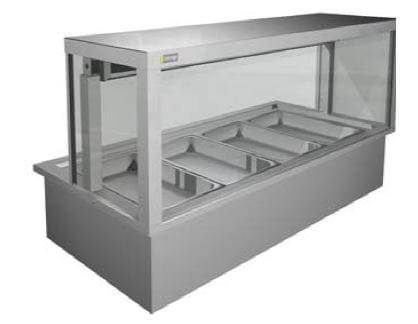

Linear Display Fridge for Hot or Cold Food
Flexible and Economical Display Fridges
The LINEAR SERIES (LS) offers you easier ways to create flexible and great-looking food display cabinet line-ups. This range, that includes drop-in modular display wells and the new Linear Mobile Trolleys, has been designed to enable you to construct a tailored food service line-up to meet the individual business needs.
These food display units are perfect for self serve environments and they have optional sneeze guards available. (Full Curved Glass, Double Sneeze guard or Square Gantry)
The Linear Food Displays are available in a refrigerated model as well as a heated option. The refrigerated model is suitable for cold foods such as desserts, salads and cold meats and the heated option enables hot food items such as wet dishes, fried items and other hot food to be merchandised in a stylish and impressive way.
The Linear series is available in 3, 4 or 5 pan models (Refrigerated or Bain Marie)
Optional sneeze guards (Full Curved Glass, Double Sneeze guard or Square Gantry) provide options for use in a self serve environment.
Find your choice of Display Chillers Today
Refrigerated Linear Model
Product Features:
- Drop-in refrigerated well
- Deck forced refrigeration
- Canopy LED light
- Integral condenser
- Gantry supplied as a separate component to be fitted on site
- Island curved, full curved or canopy sneeze-guard options for self serve environments
| Model | Dimensions | Pans | Refrigerant | Power |
| LSRF3 | 1175 x 720 x 535 | 3 x 1/1 - 65 mm Gastro Pans | 134a | 240V / 6.0 amp |
| LSRF4 | 1525 x 720 x 535 | 4 x 1/1 - 65mm Gastro Pans | 134a | 240V / 7.5 amp |
| LSRF5 | 2225 x 720 x 535 | 5 x 1/1 - 65mm Gastro Pans | 134a | 240V / 7.5 amp |
Bain Marie Linear Model
Product Features:
- Drop-in heated wells
- Auto Fill with Wet element
- Overhead halogen lights
- Calrod overhead heating element
- Gantry supplied as a separate component to be fitted on site
- Full size pans 65mm deep included (excluding lids)
- Island curved, full curved or canopy sneeze-guard option for self serve environments
| Model | Dimensions | Pans | Temperature | Power |
| LSBM3 | 1175 x 720 x 535 | 3 x 1/1 - 65mm Gastro Pans | 75 (Celsius) | 240V / 13 amp |
| LSBM4 | 1525 x 720 x 535 | 4 x 1/1 - 65mm Gastro Pans | 75 (Celsius) | 240V / 16.7 amp |
| LSBM5 | 2225 x 720 x 535 | 5 x 1/1 - 65mm Gastro Pans | 75 (Celsius) | 240V / 24.5 amp |
